2023 Jayco Pinnacle 36FBTS- KY505A

2023 Jayco Pinnacle 36FBTS

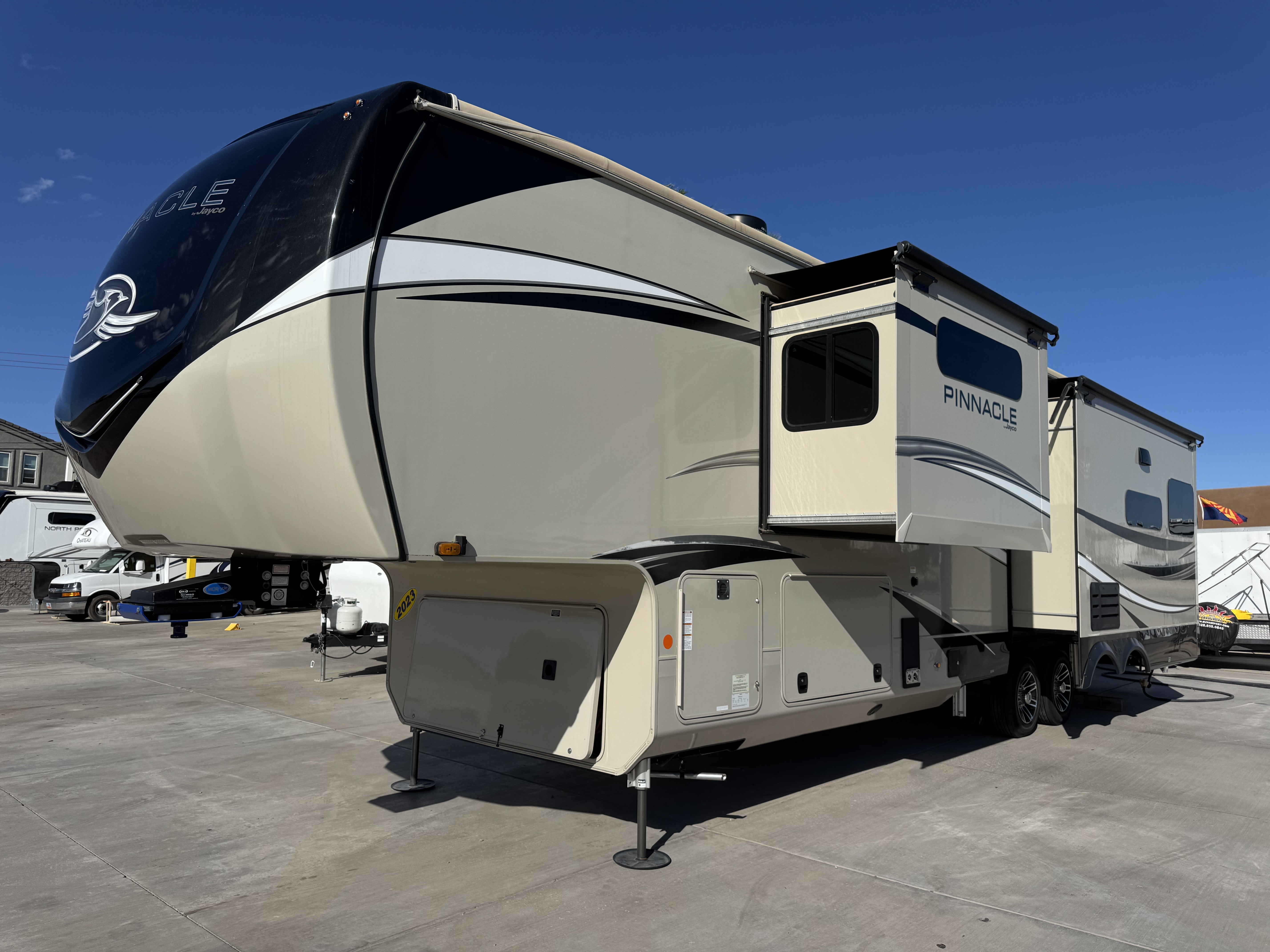

Aptly named, the Pinnacle luxury fifth wheel takes all the best a fifth wheel has to offer and elevates it to the top with technology, luxury, and attention to detail. The 102-inch wide body design provides the most room available in the industry. Room for solid hardwood cabinets and the Magnum 6XL roof rafter system – a six-inch roof that doesn’t taper down, creating higher ceilings throughout. Available in three stunning exterior full-body paint options, try the Pinnacle of camping today.

Features May Include:

Exterior

• Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including slide room end walls)
• 12 in. structural steel I-beam with 10 in. steel drop frame
• Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one piece, seamless roof material with a 20 year warranty material
• Climate Shield™ zero-degree tested weather protection:
  • Fully enclosed and heated underbelly (ducted)
  • 40,000 BTU output furnace
  • Double layer fiberglass batt insulation (roof and floor)
  • PEX plumbing, 2 in. block foam and reflective foil
• JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)

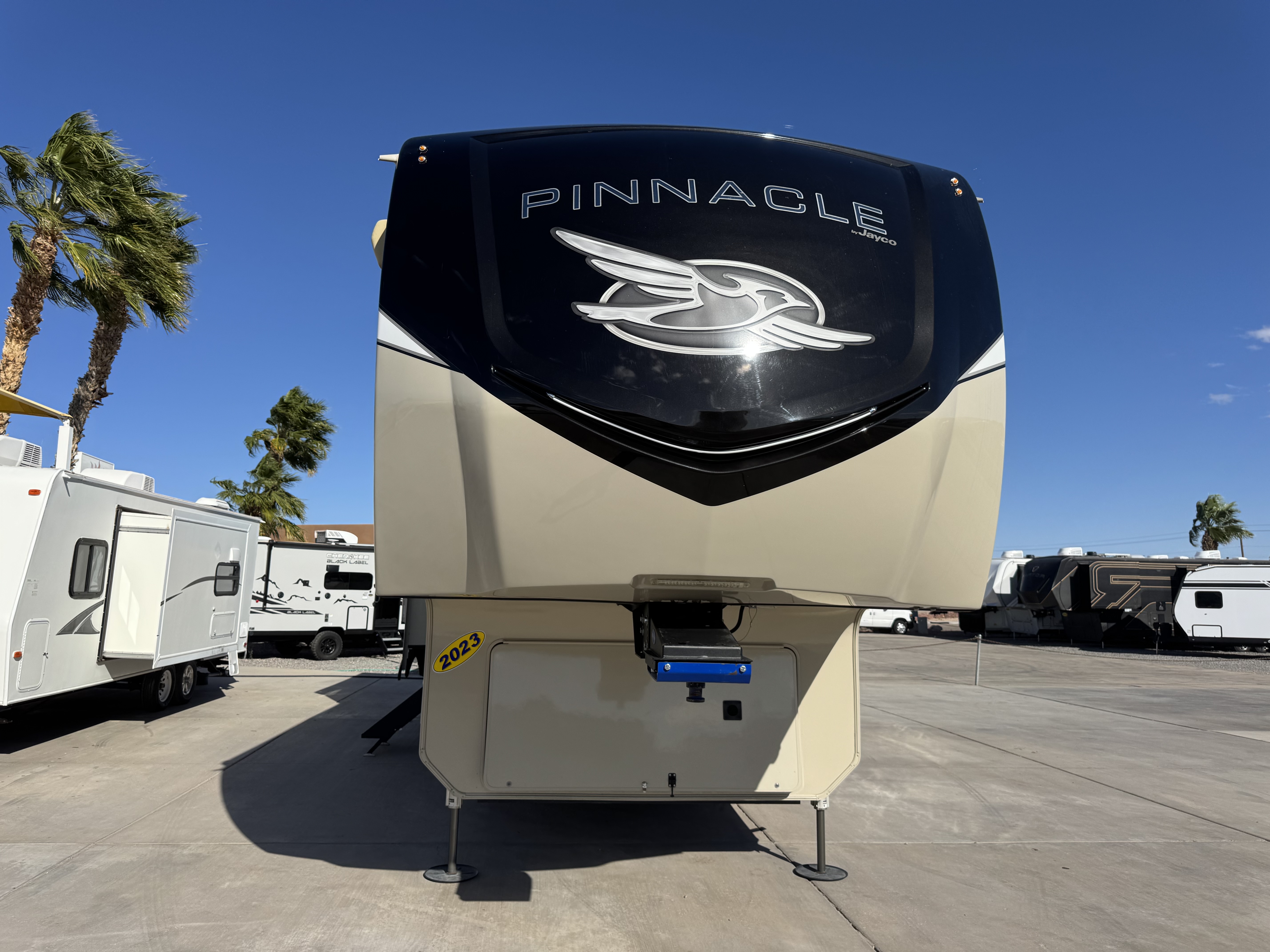

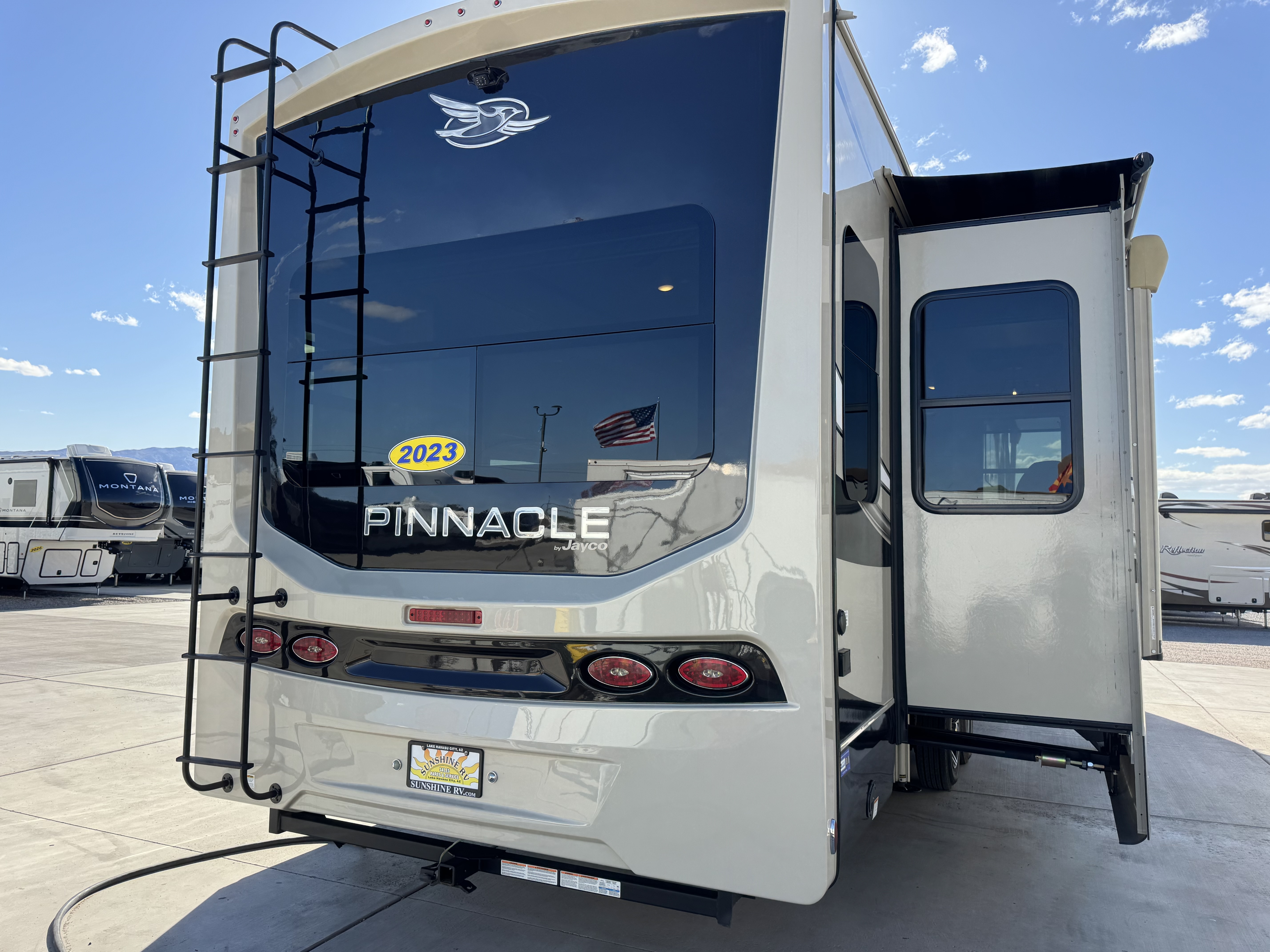

• Painted fiberglass front and rear cap with double clear coat and built-in specialty LED lighting
• Frameless dark tinted safety-glass windows
• Custom automotive-grade vinyl exterior graphics package
• 102 in. widebody construction
• Skirt metal enclosed drop frame
• LED exterior lighting package
• Dual 30 lb. propane bottles with auto regulator
• Doorside compartment framed and vented for third propane bottle
• Pass-through storage with Slam-latch™ baggage doors
• Digital TV antenna with Wi-Fi extender
• Exterior marine-grade speakers

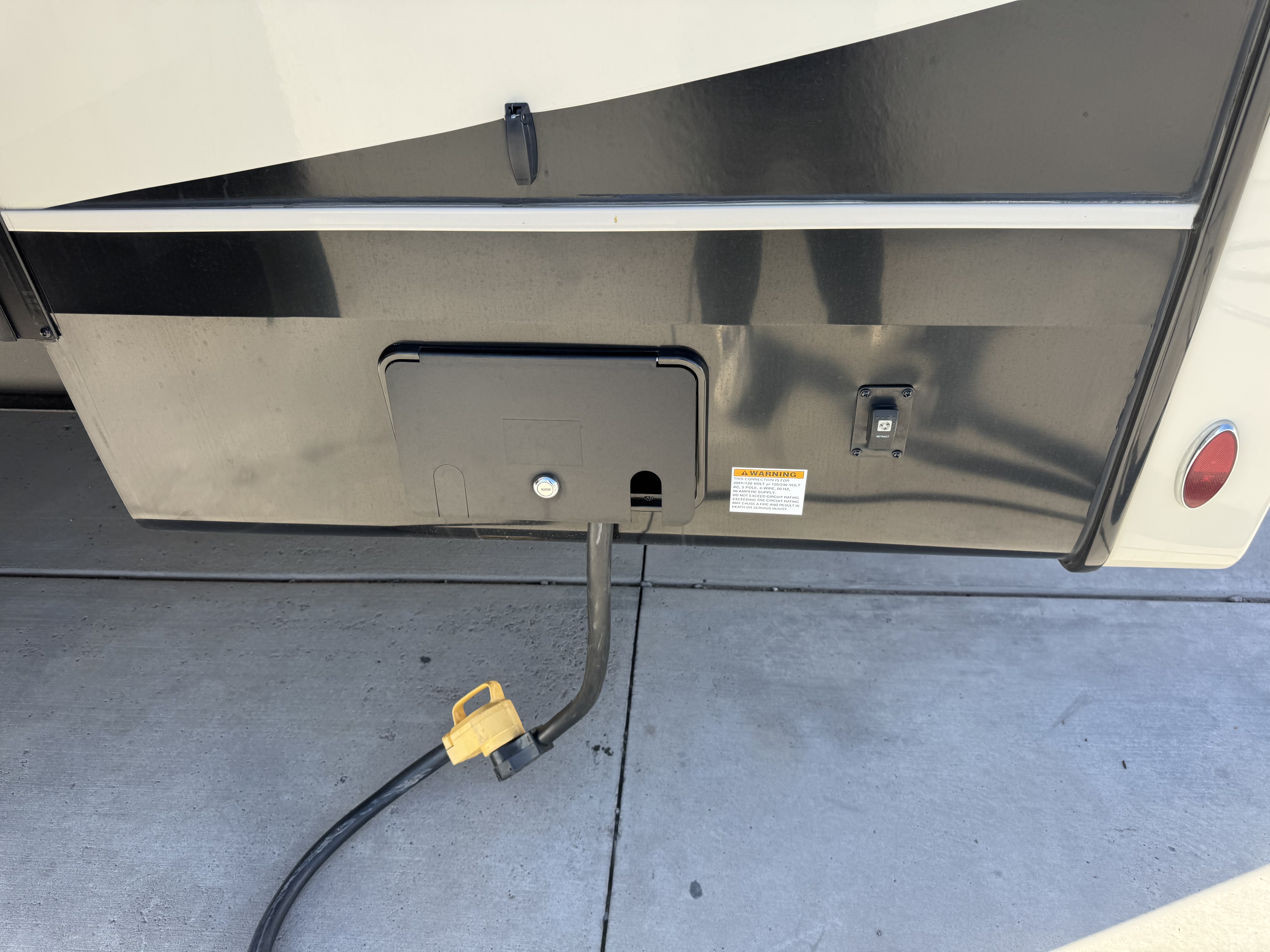

• Fully enclosed, universal docking center:
  • Selectable water connections
  • Quick-connect outside shower
  • Black tank flush
  • Winterization and sanitation
  • Independent satellite wiring
  • Whole coach cable hookups
  • Water heater bypass
• Battery disconnect
• Under-mounted spare tire
• JayPort outside griddle prep (standard on all floorplans without a standard outside kitchen)
• Built in sewer hose carrier
• 3,000 lb. tow hitch with 4-way pin
• Inverter pre-wire to select outlets
• 120V heat blankets on all tanks plus 12V heat tape on fresh water line

Interior

• Solid hardwood slide fascia
• Handcrafted hardwood glazed doors, stiles, drawers and trim
• 5/8 in. tongue-and-groove joined plywood floor and 3/8 in. roof decking
• Vinyl flooring (made in the USA) throughout including slide rooms
• Ceiling fan (select models)
• LED interior lighting throughout
• LED accent lighting above slideouts

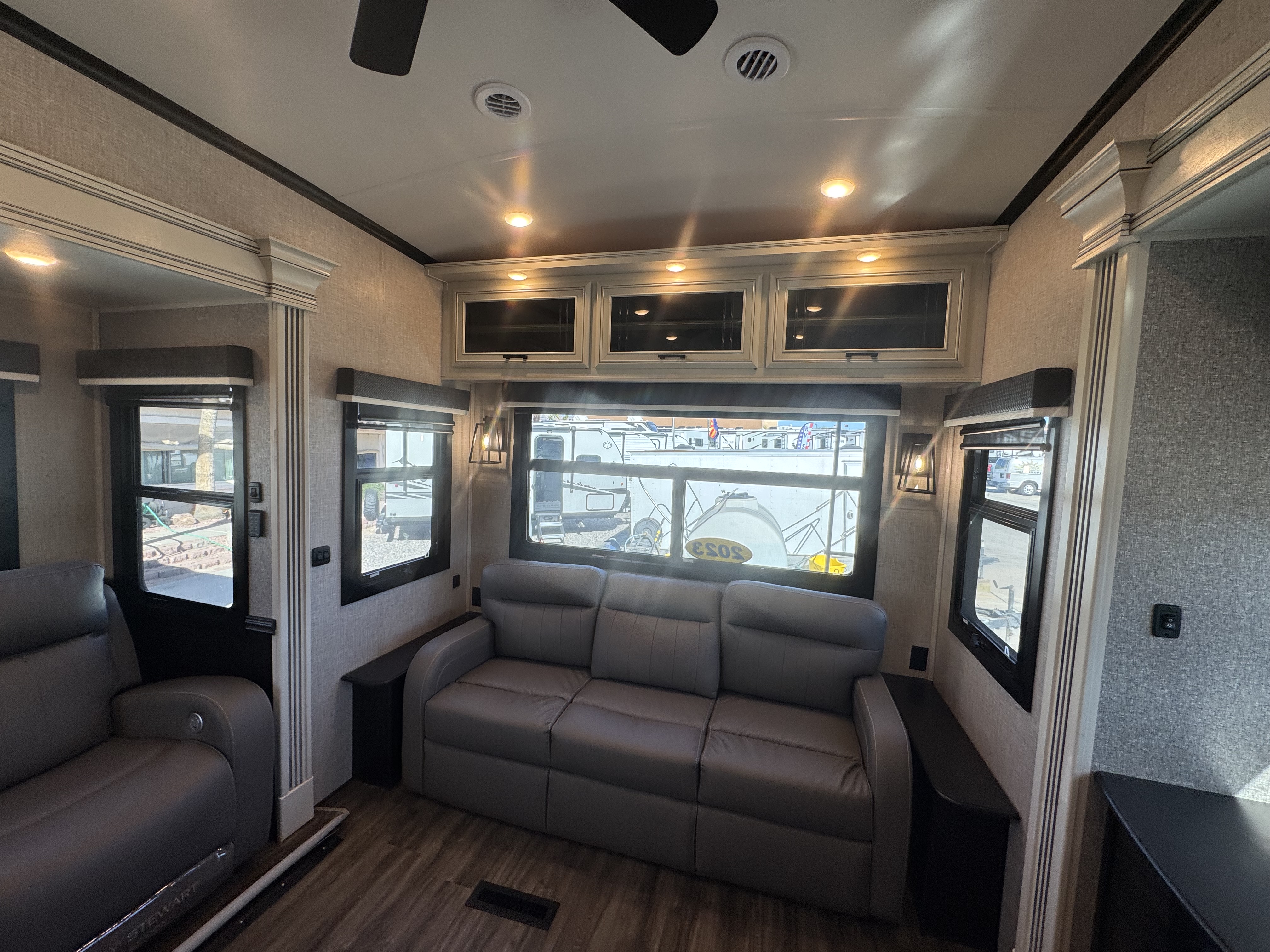

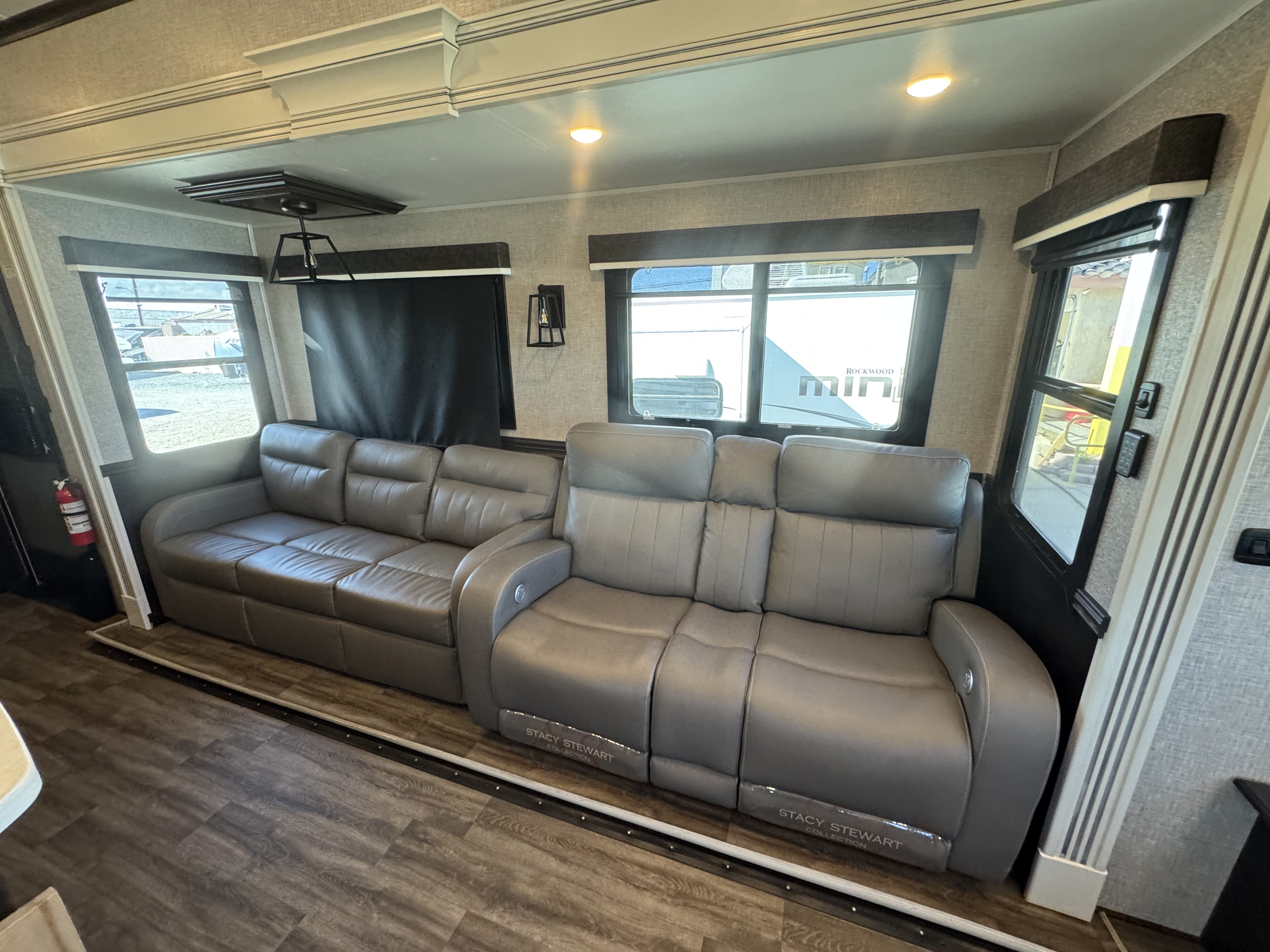

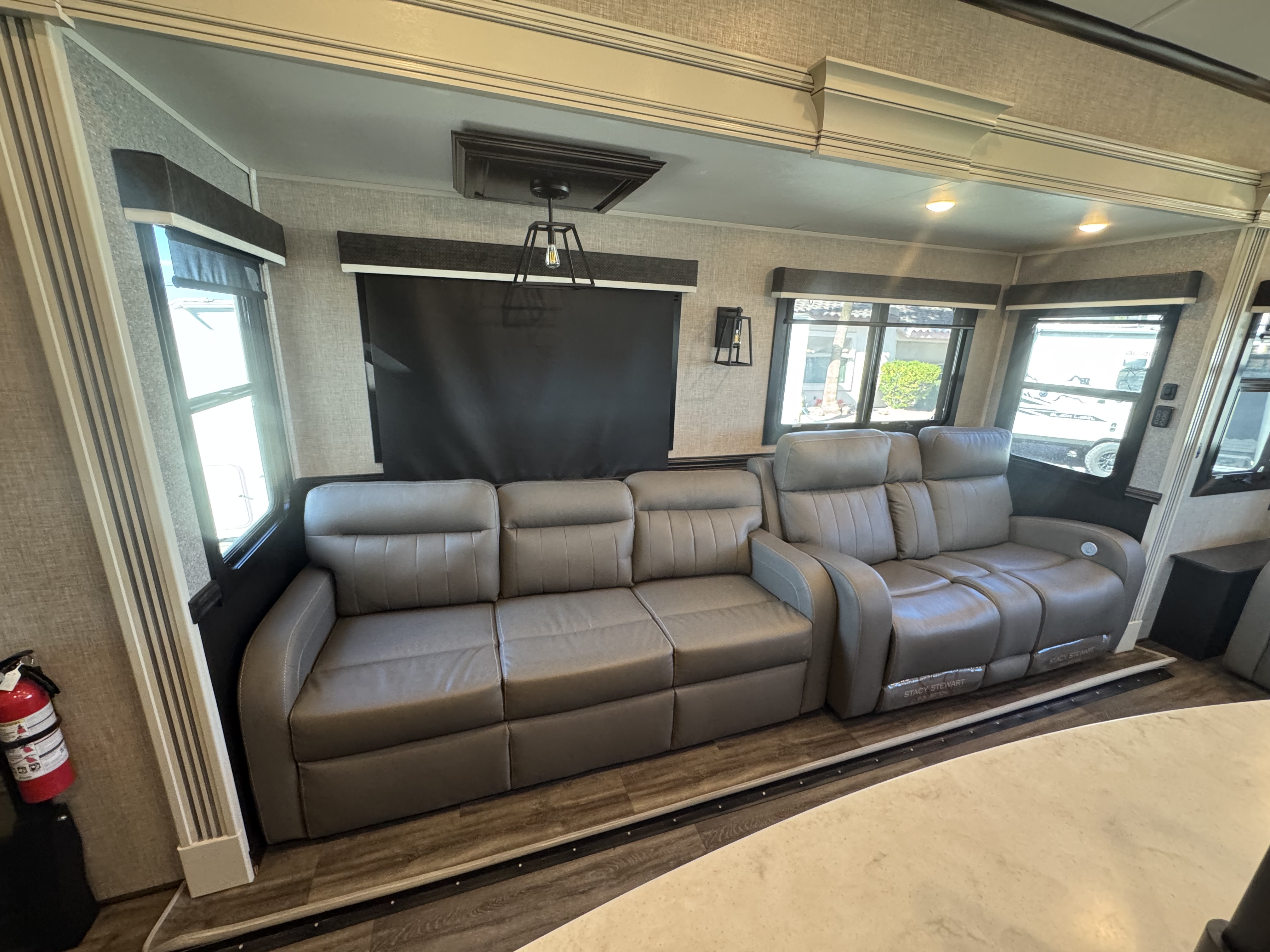

• Tri-fold hide-a-bed sofa with sleep surface (select models)
• Dual USB charging ports throughout
• 12V charging station
• JayVoice voice command system - controls lighting, A/C and furnace
• “Shoe garage” in hallway step (select models)
• Flip-up tabletop storage next to tri-fold sofa (select models)
• Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
• Toe kick nightlights in bedroom, bathroom and kitchen
• Pull-out spice rack above microwave (select models)

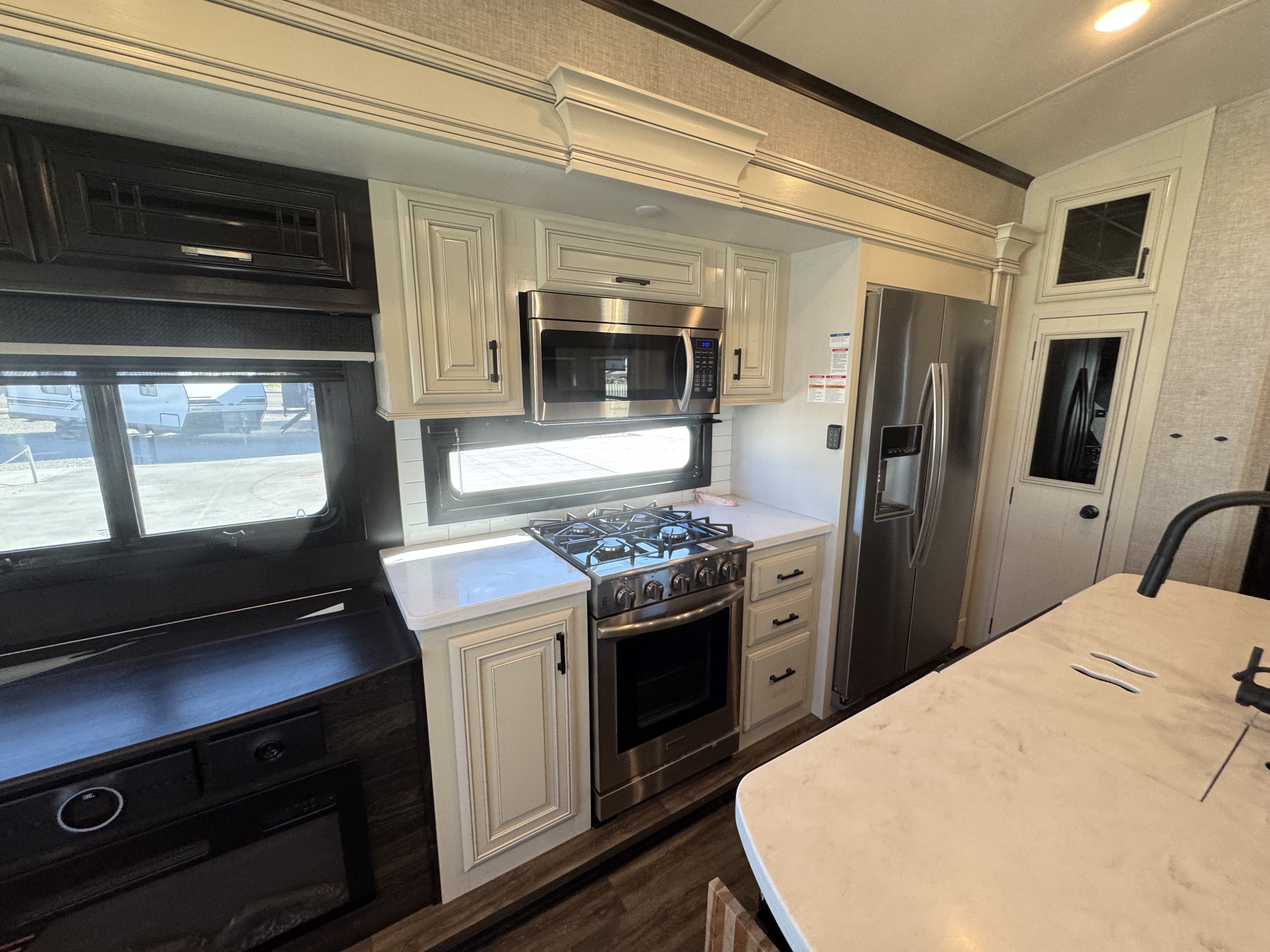

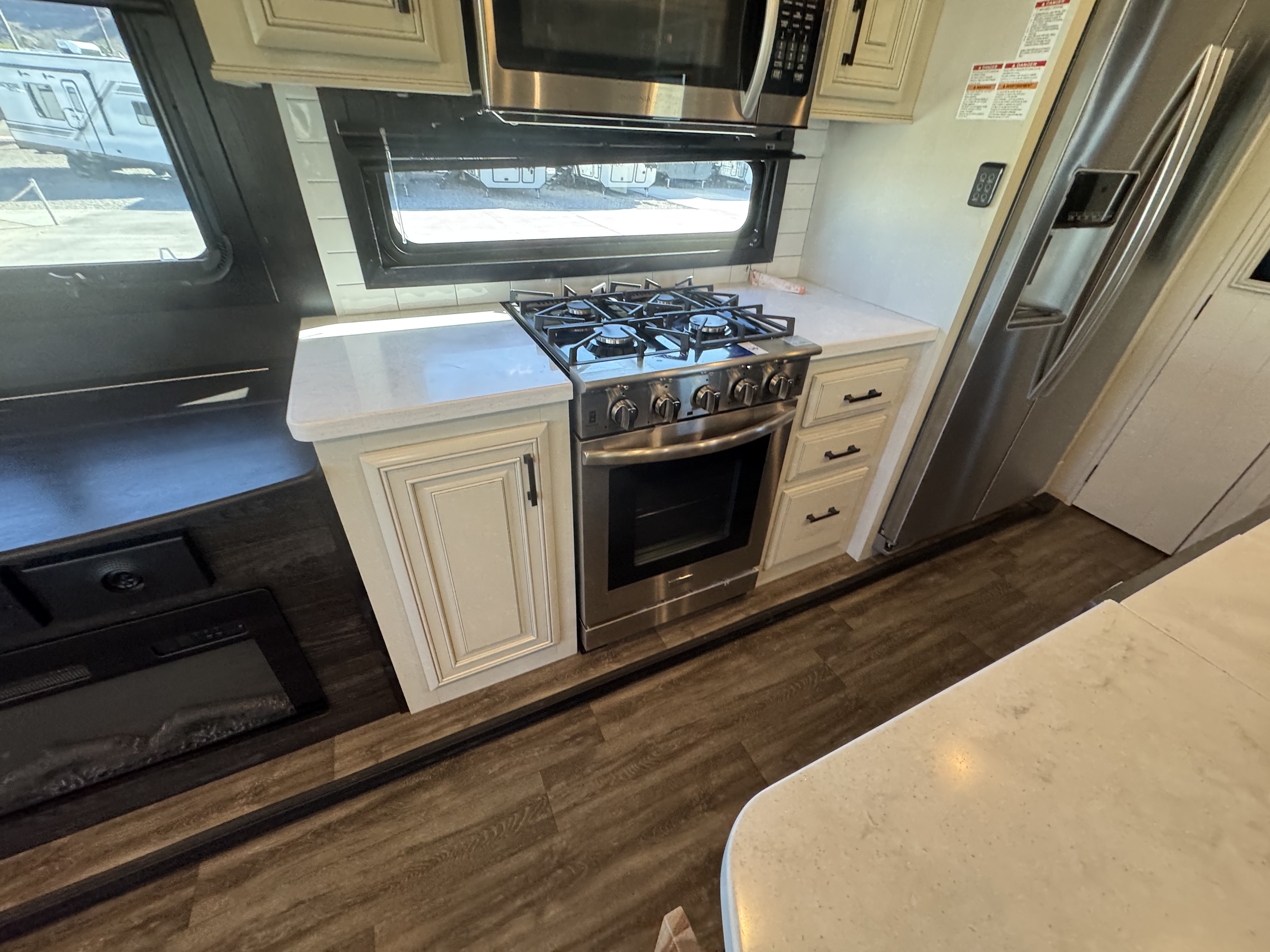

• Farmhouse stainless steel kitchen sink
• Residential-grade, pull-out kitchen faucet
• Extra 120V power outlets in kitchen and slide rooms

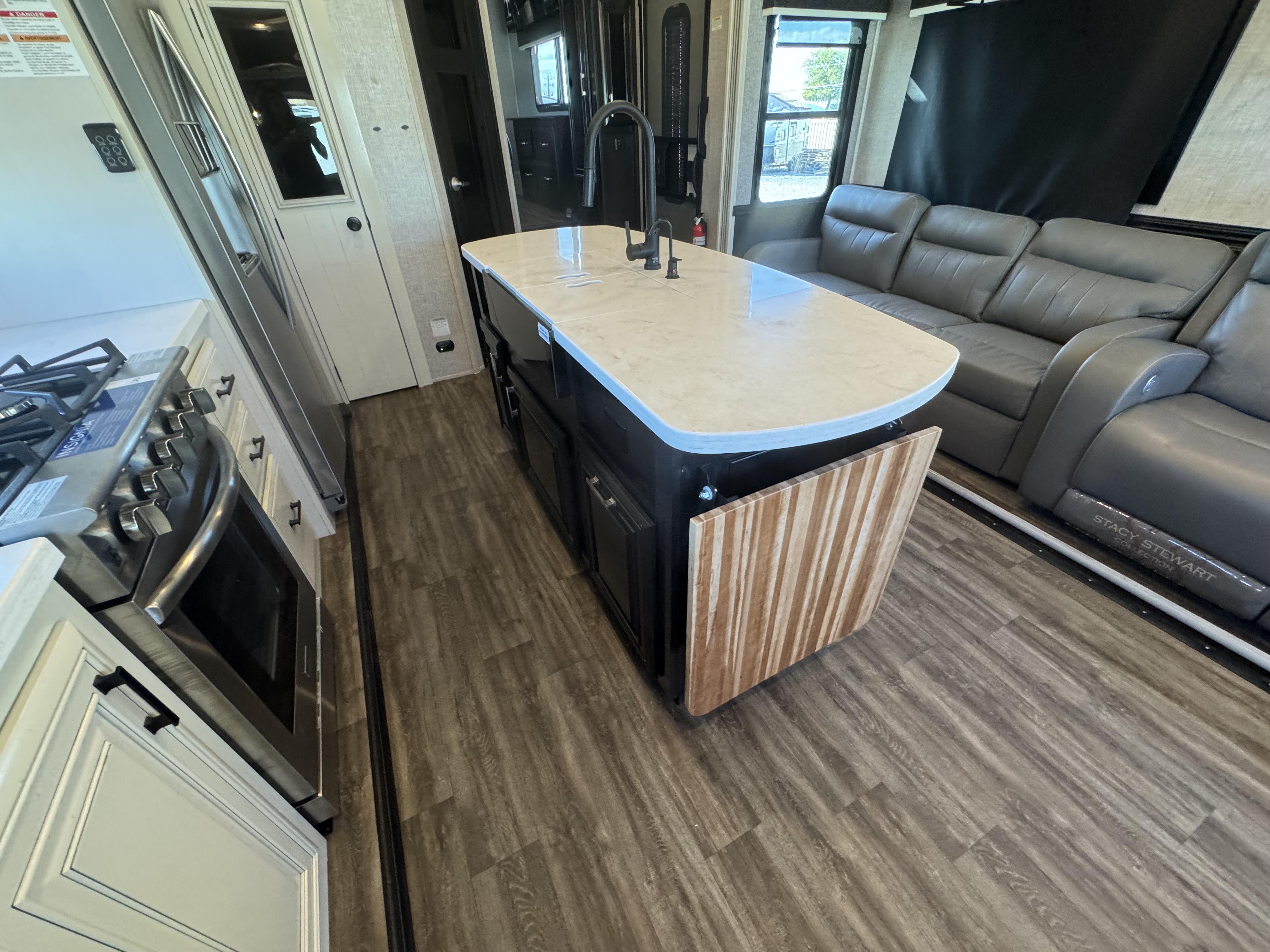

• Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
• Pull-out utility drawer under kitchen sink

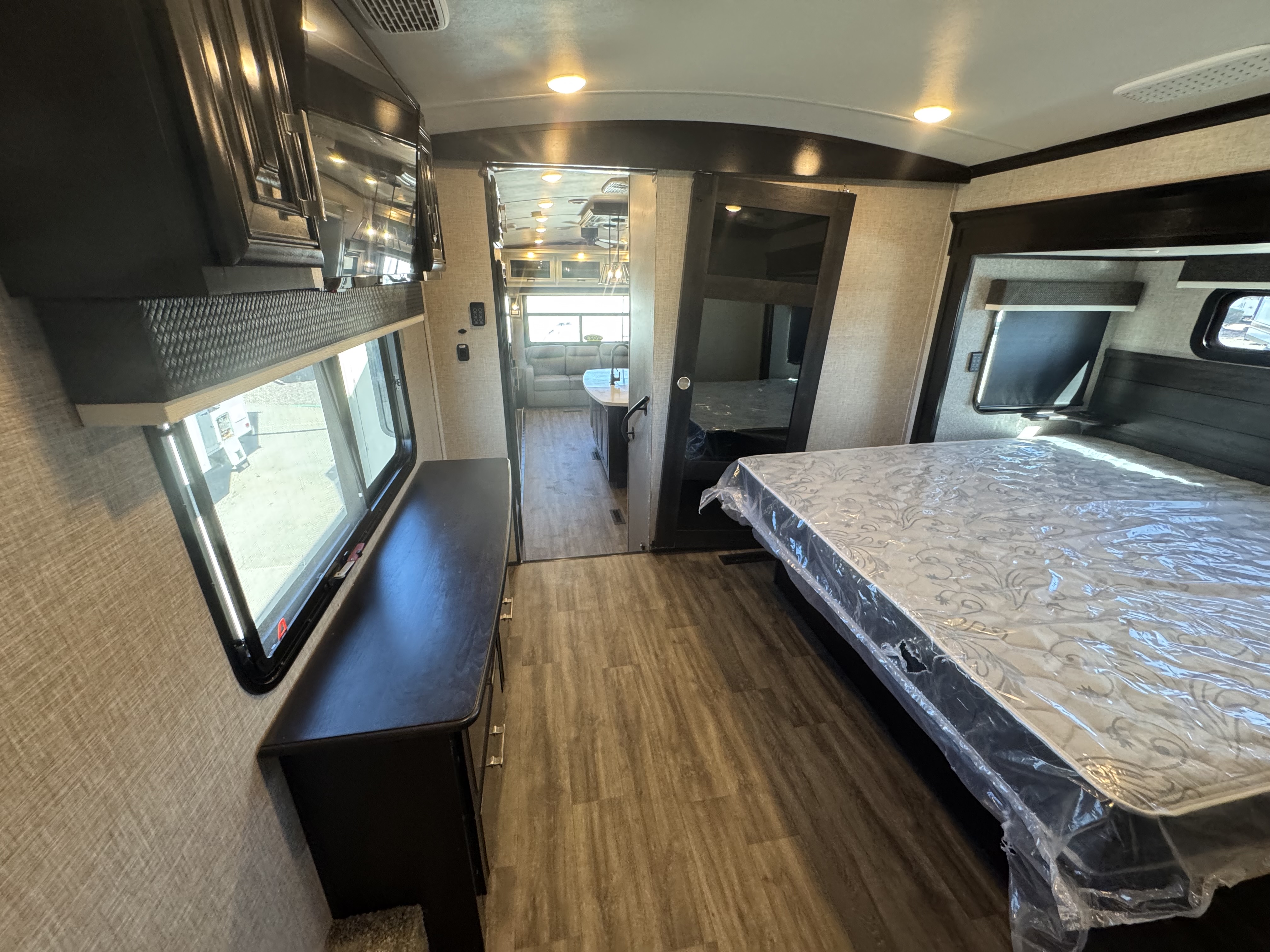

• Residential quilted bedspread and pillows

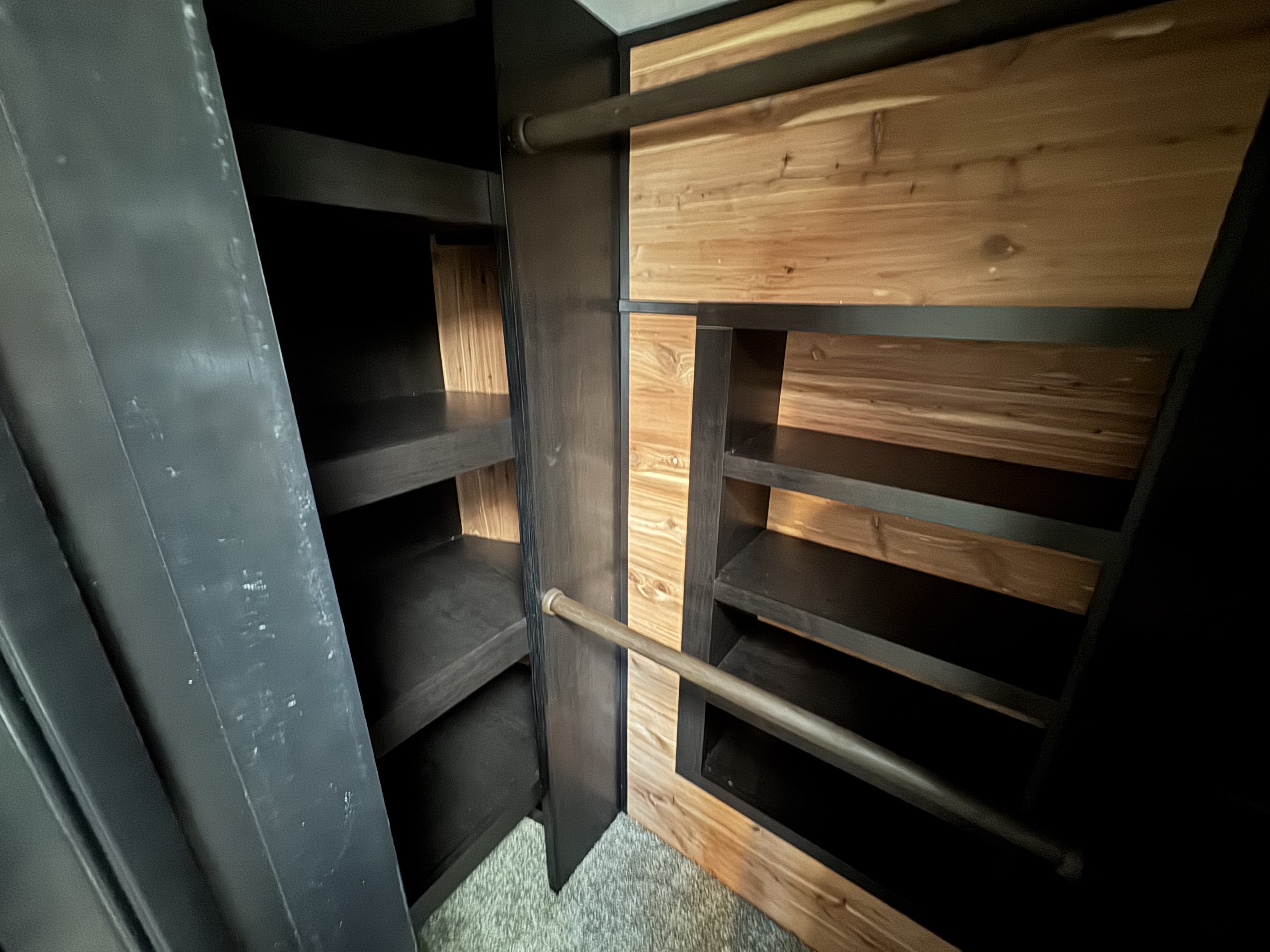

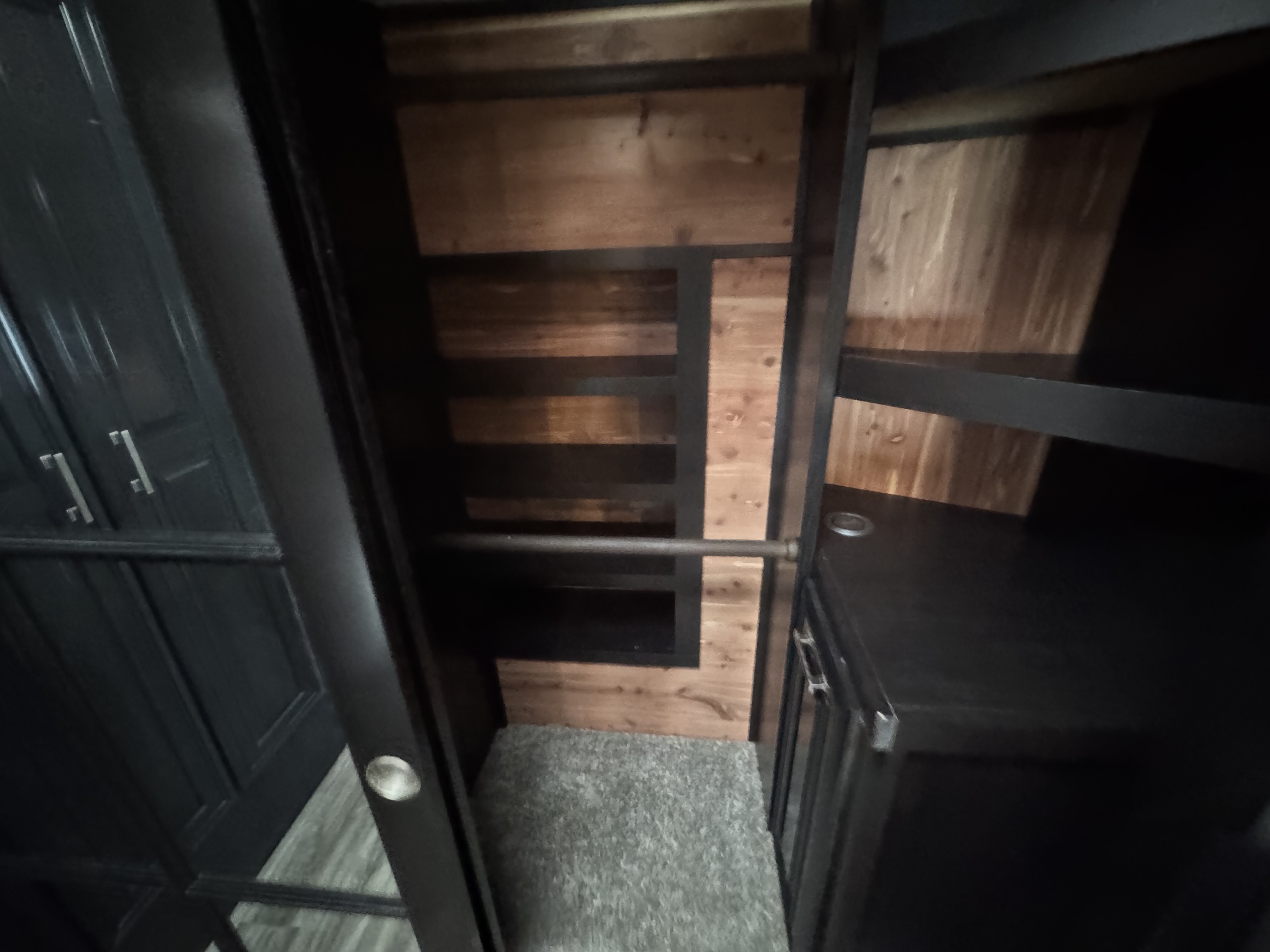

• Cedar-lined front wardrobe closet
• Gas-strutted under-bed storage
• C.P.A.P. prepped bedroom (includes 120V outlets and night stands)
• Carbon monoxide and LP detector

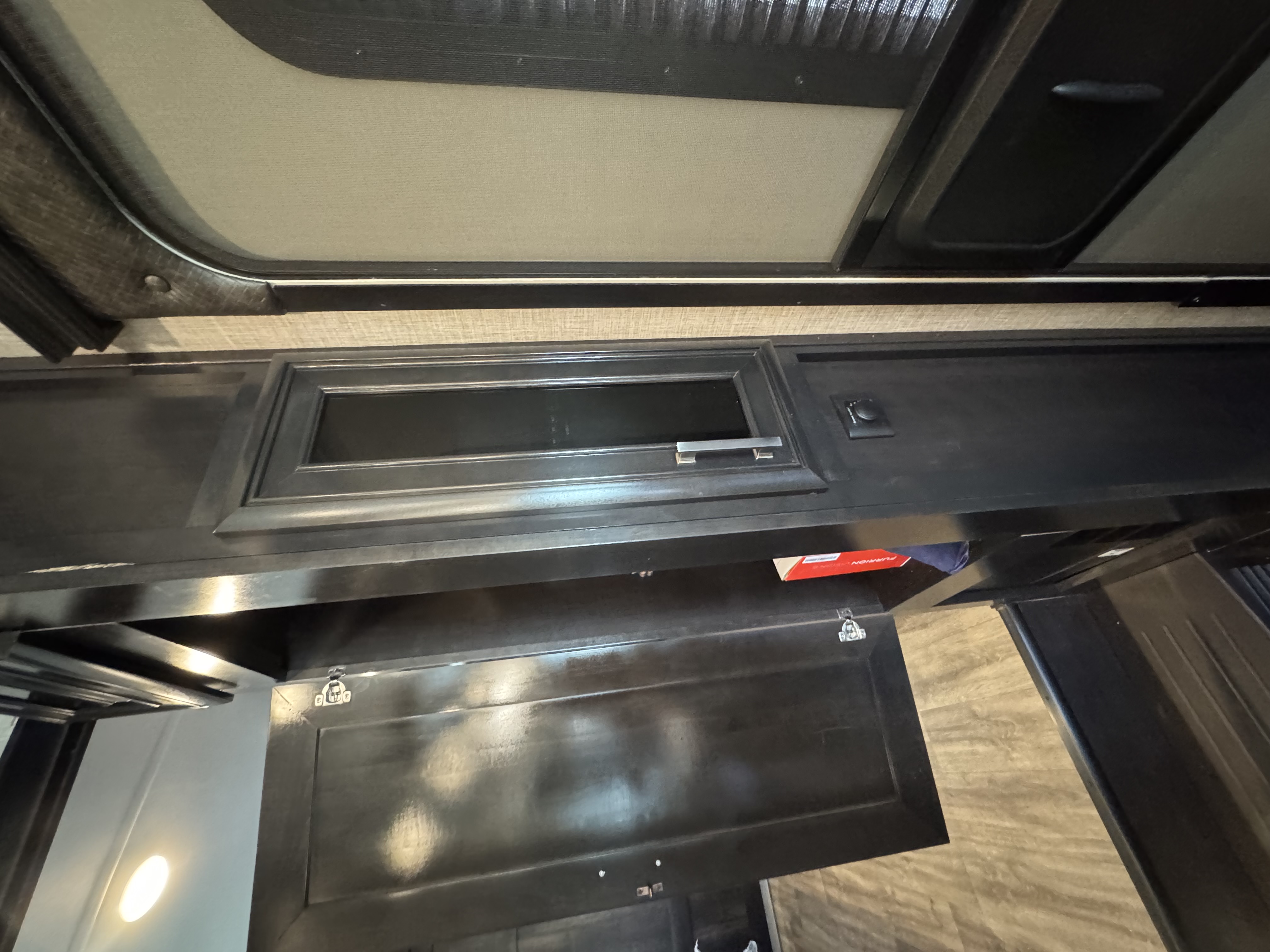

• Flip-up hidden storage in bedroom chest of drawers (select models)
• Built-in laundry hamper in wardrobe (select models)
• Cup holders in bedroom nightstands (N/A 36SSWS)
• Bathroom skylight

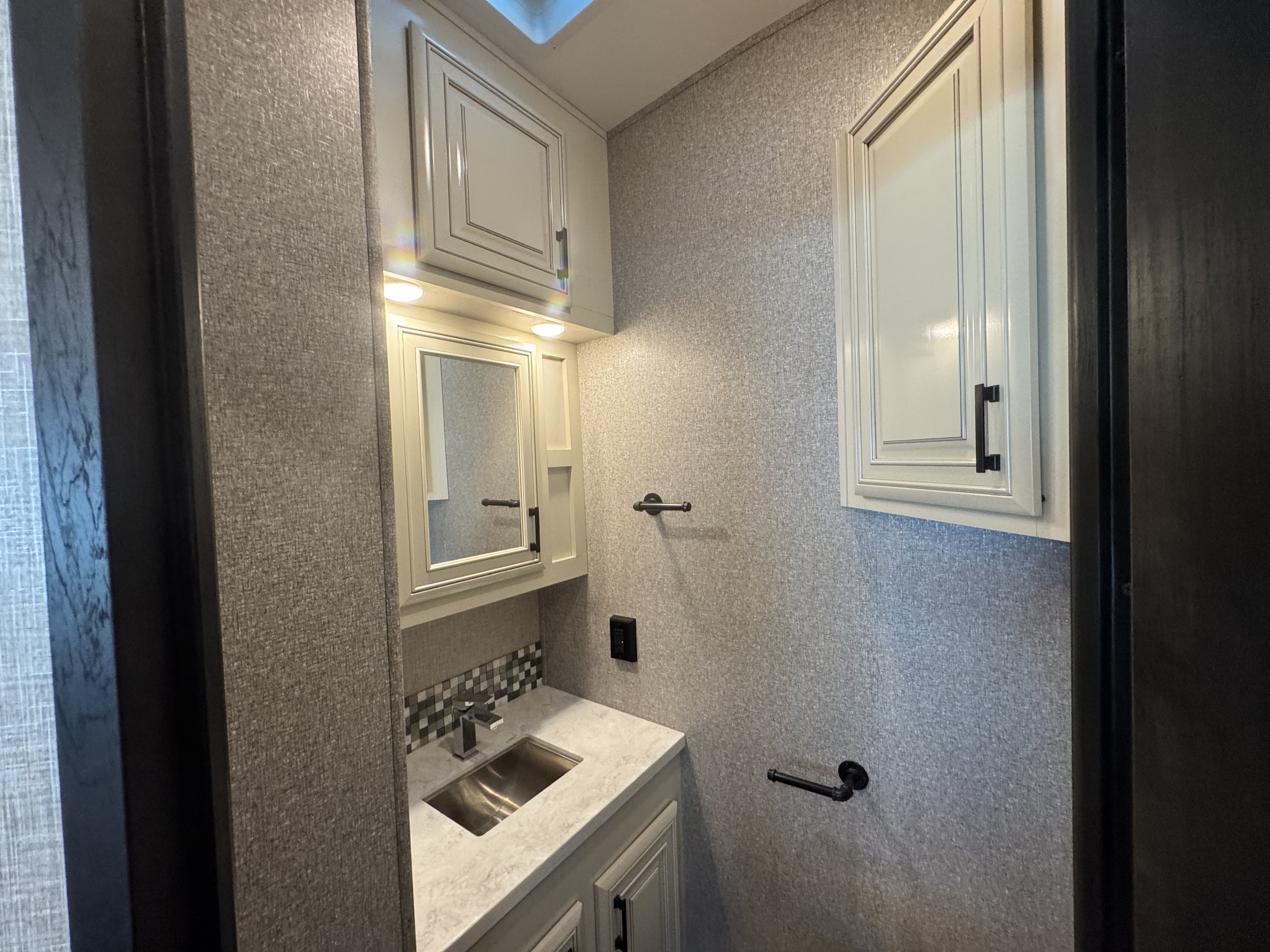

• LED backlit custom framed mirror and medicine cabinet
• Residential bathroom backsplash

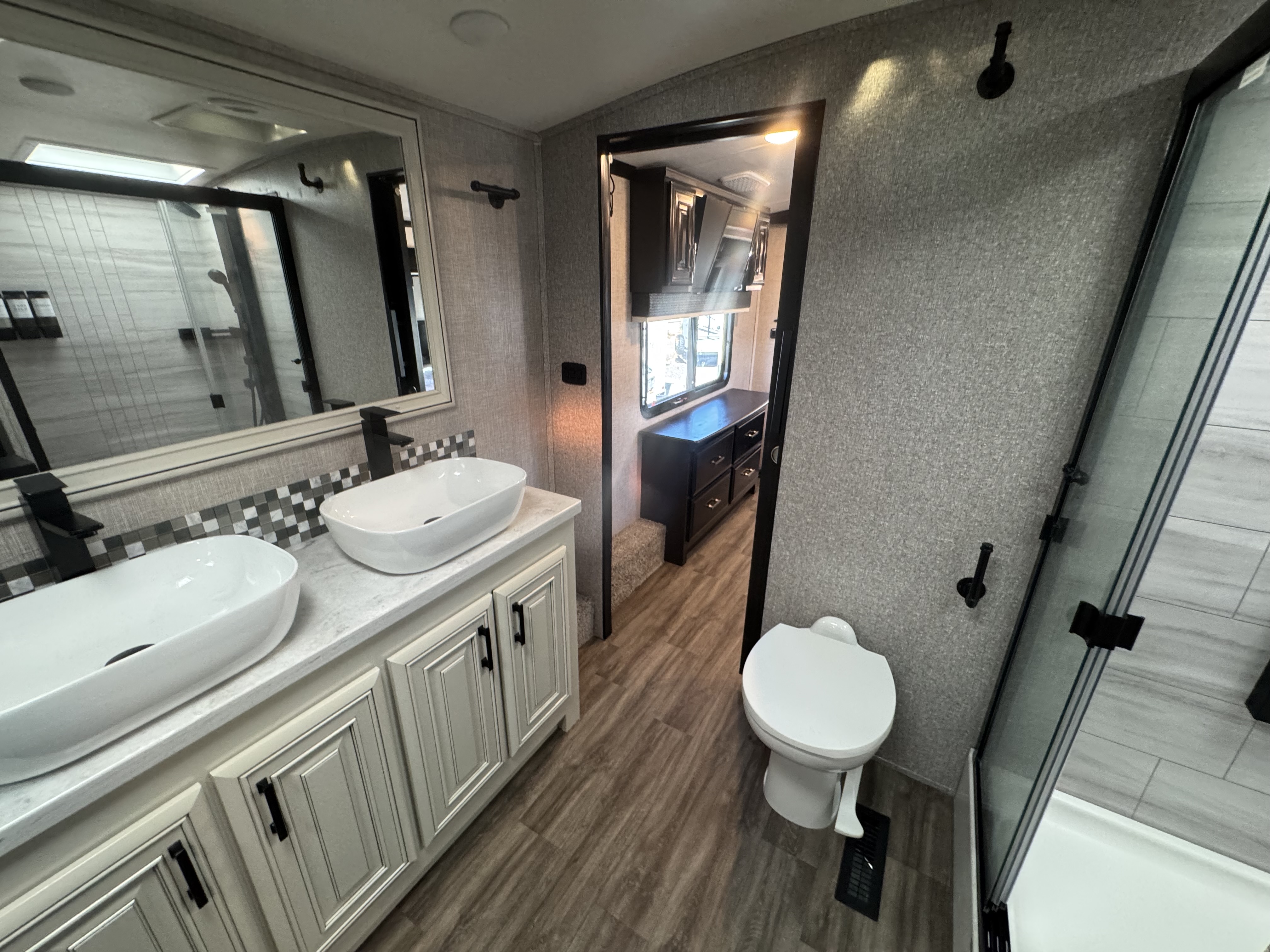

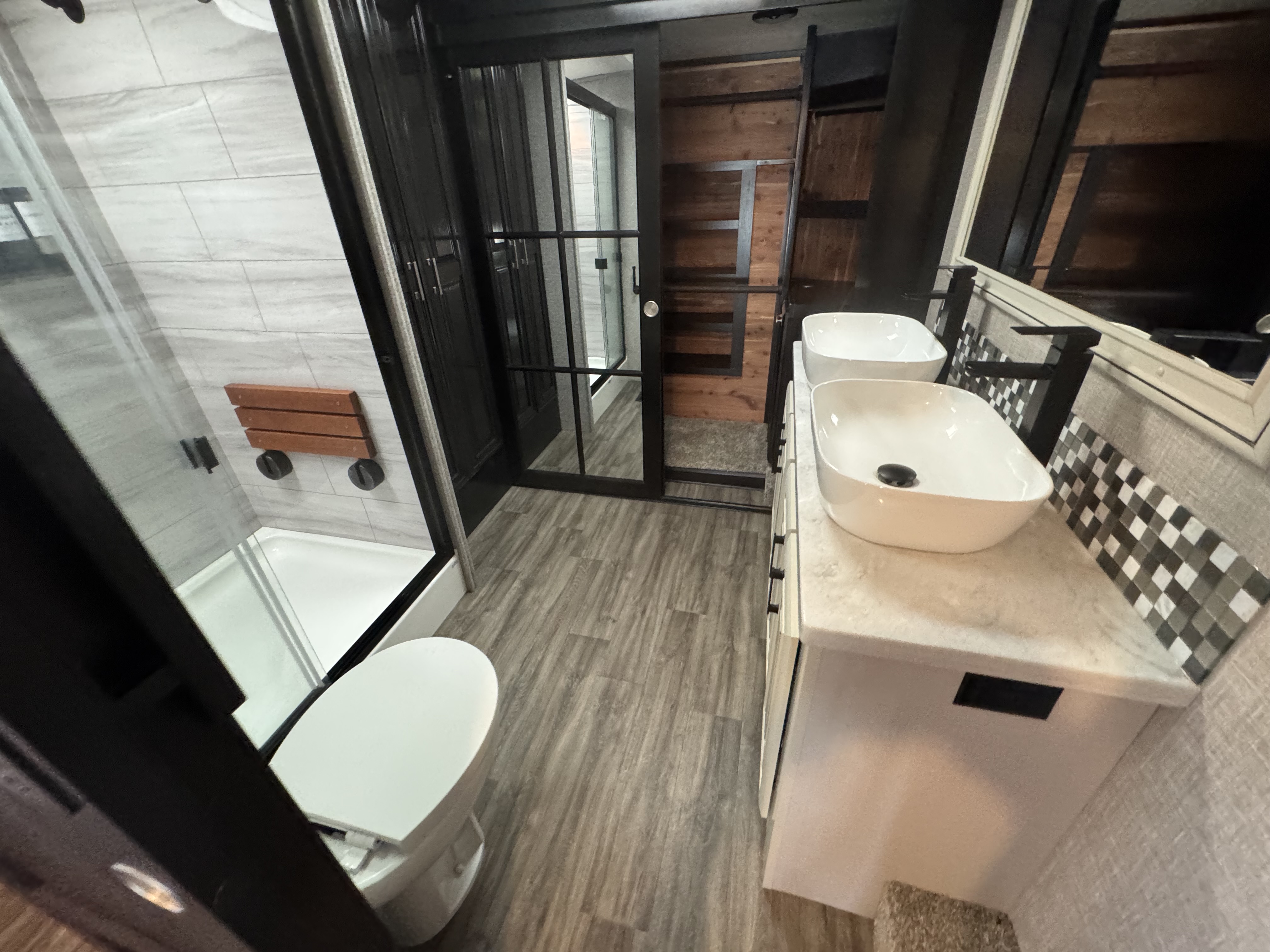

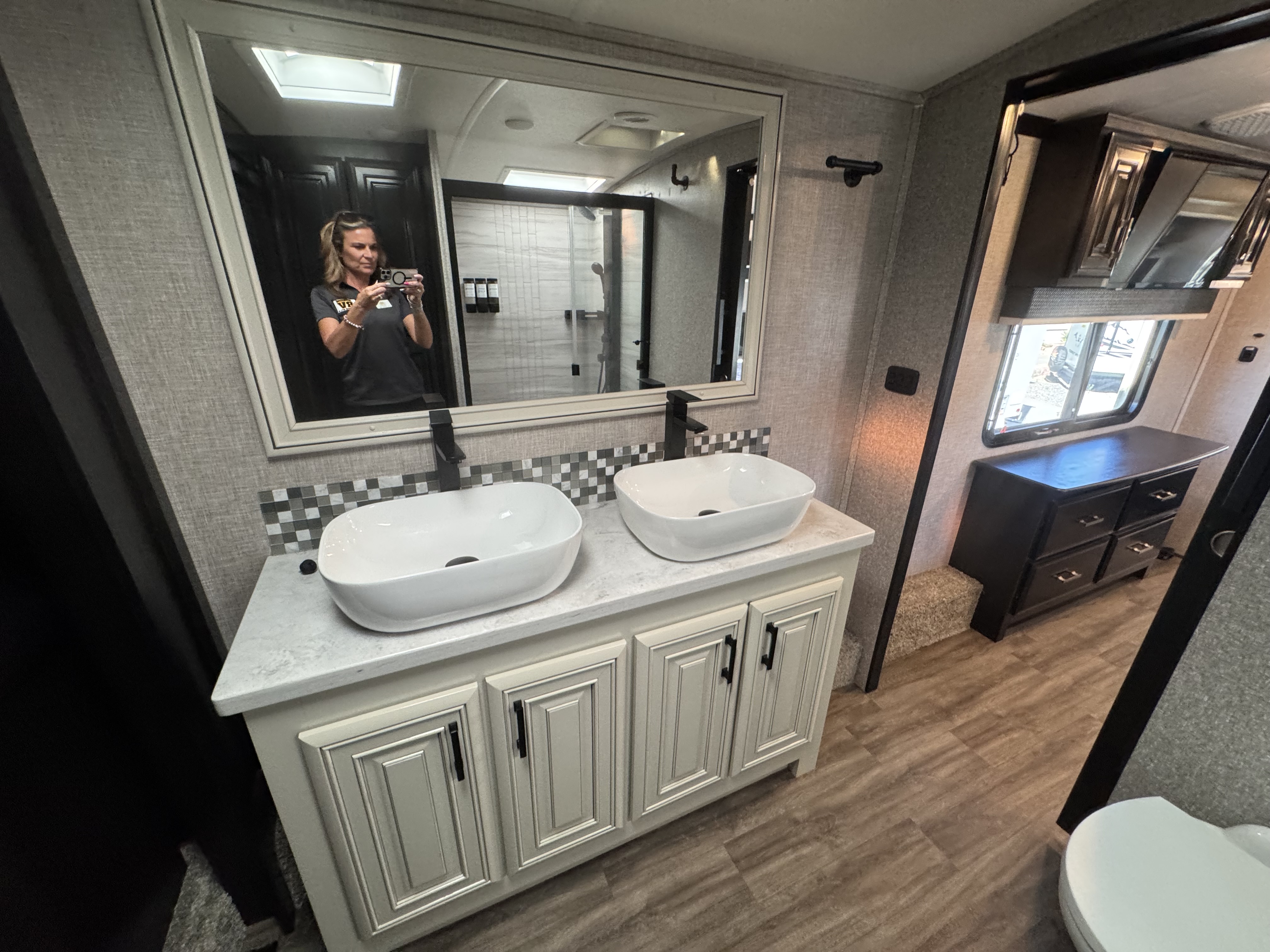

• Vessel bowl sink with high rise faucet in main bath
• Porcelain toilet with foot flush
